ABOUT VERTIKOL ELEVATOR

14+ Years of Precision Engineering & In-House Manufacturing

Founded and led by Mr. Karuna Nidhan, Vertikol Elevator has evolved into Maharashtra's leading manufacturer of high-precision vertical transportation systems.

In-House CNC Fabrication

Equipped with state-of-the-art CNC Laser Cutting and CNC Bending machinery at our Sasunavghar plant to fabricate custom car frames, door headers, and structural safety assemblies.

ISO 9001:2015 Certified

Strict quality management systems ensuring that every elevator component undergoes multi-tier endurance tests, emergency stop calibrations, and zero-defect checks before installation.

Turnkey Technical Service

From architectural shaft planning and structural layout drawings to swift installation, government inspection compliance, and round-the-clock Annual Maintenance Contracts (AMC).

WE INTEGRATE WORLD-CLASS COMPONENTS & RAW MATERIALS FROM TRUSTED GLOBAL PARTNERS:

SHARP TORINDRIVE MONADRIVE SICOR MARAZZI BONLY MONARCH FINOLEX CABLES TATA STEEL JINDAL STEEL & POWER USHA MARTIN

PRODUCT CATALOGUE

Vertical Mobility Engineered For Every Shaft & Building Type

Explore our full line of passenger, panoramic, freight, medical, and residential elevators.

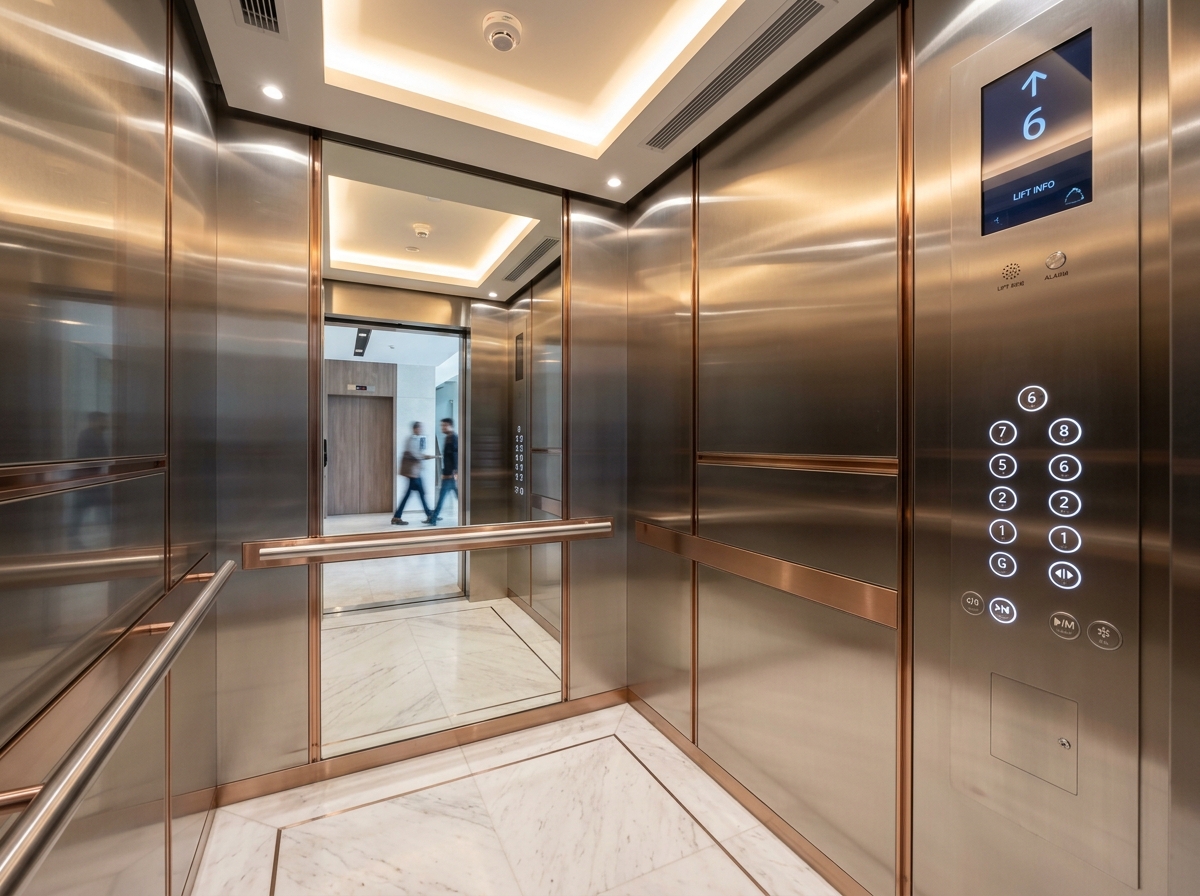

Machine Room Less (MRL) Lift

Key Advantage: Eliminates separate overhead machine room, saving shaft space and reducing energy consumption by up to 40% using gearless VVVF technology.

Max Load: Up to 1400 kg (20 Passengers)
Speed: 1.0 m/s to 1.75 m/s
Overhead / Pit: 4800 mm / 1500 mm
Ideal For: Apartments, commercial complexes, housing societies

GEARED TRACTION ELEVATOR

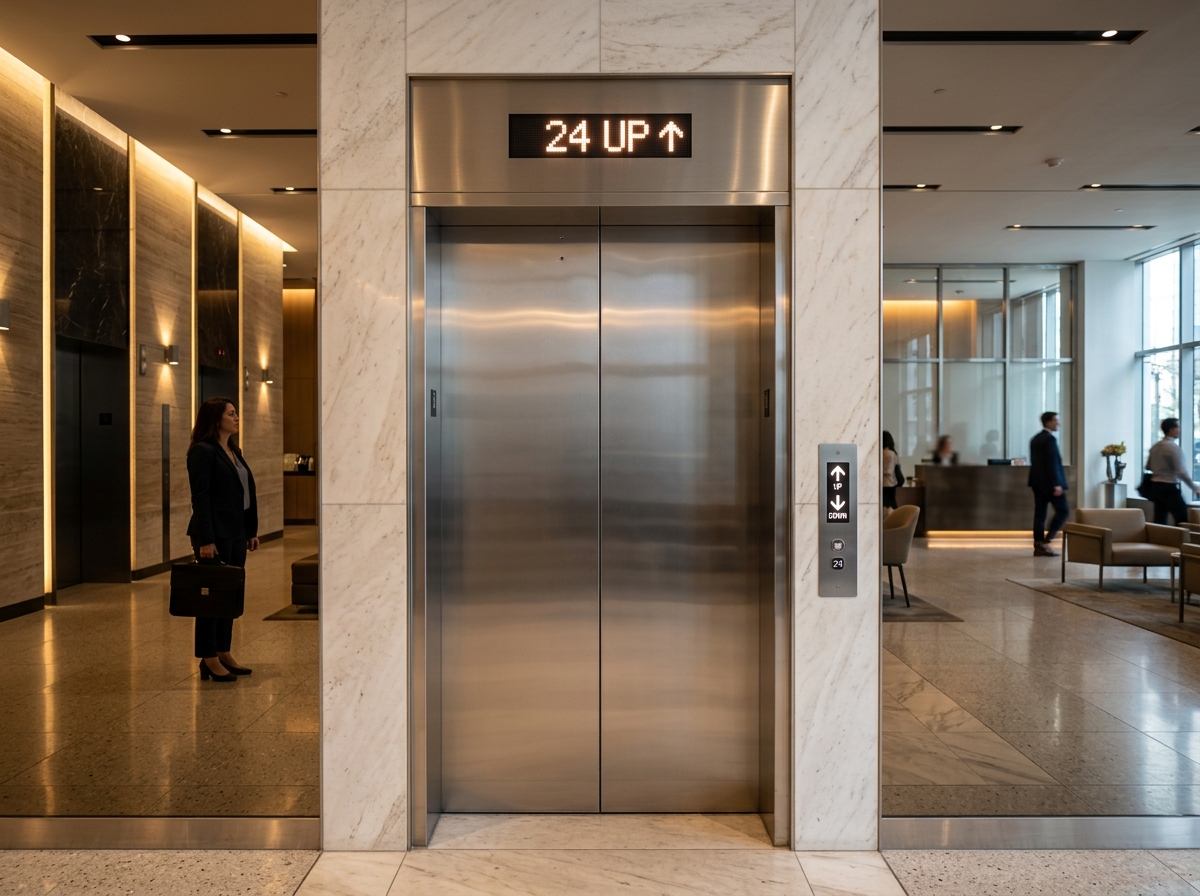

Geared Traction Lift

Key Advantage: Designed for rapid multi-story speed, continuous high-frequency travel, heavy payload capacity, and low long-term maintenance costs.

Max Load: Customized payload capacities
Speed: Up to 2.5 m/s high speed
Machine Room: Overhead Machine Room
Ideal For: High-rise corporate towers, multi-story apartments

LUXURY ARCHITECTURAL

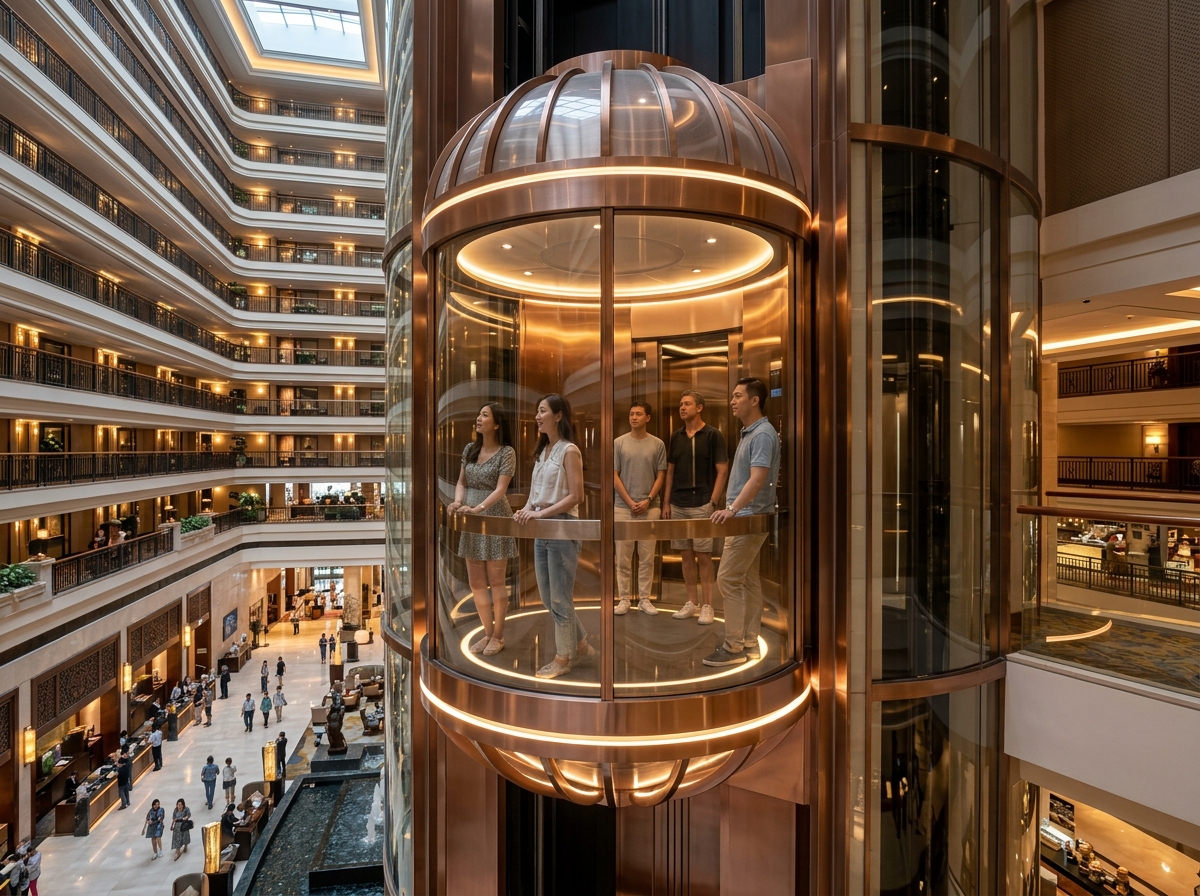

Vertikol Panoramic Glass Capsule Elevator

360° PANORAMIC CAPSULE

Panoramic Glass Capsule Lift

Key Advantage: Stunning 360° panoramic glass views, aesthetic interior lighting, elevating building facade prestige and luxury architectural value.

Frame Designs: Circular rear, 3-side square, 5-side cutting edge
Glass Spec: Laminated safety glass with UV resistance
Visibility: Full panoramic transparent view
Ideal For: Malls, luxury hotels, multiplexes, high-end villas

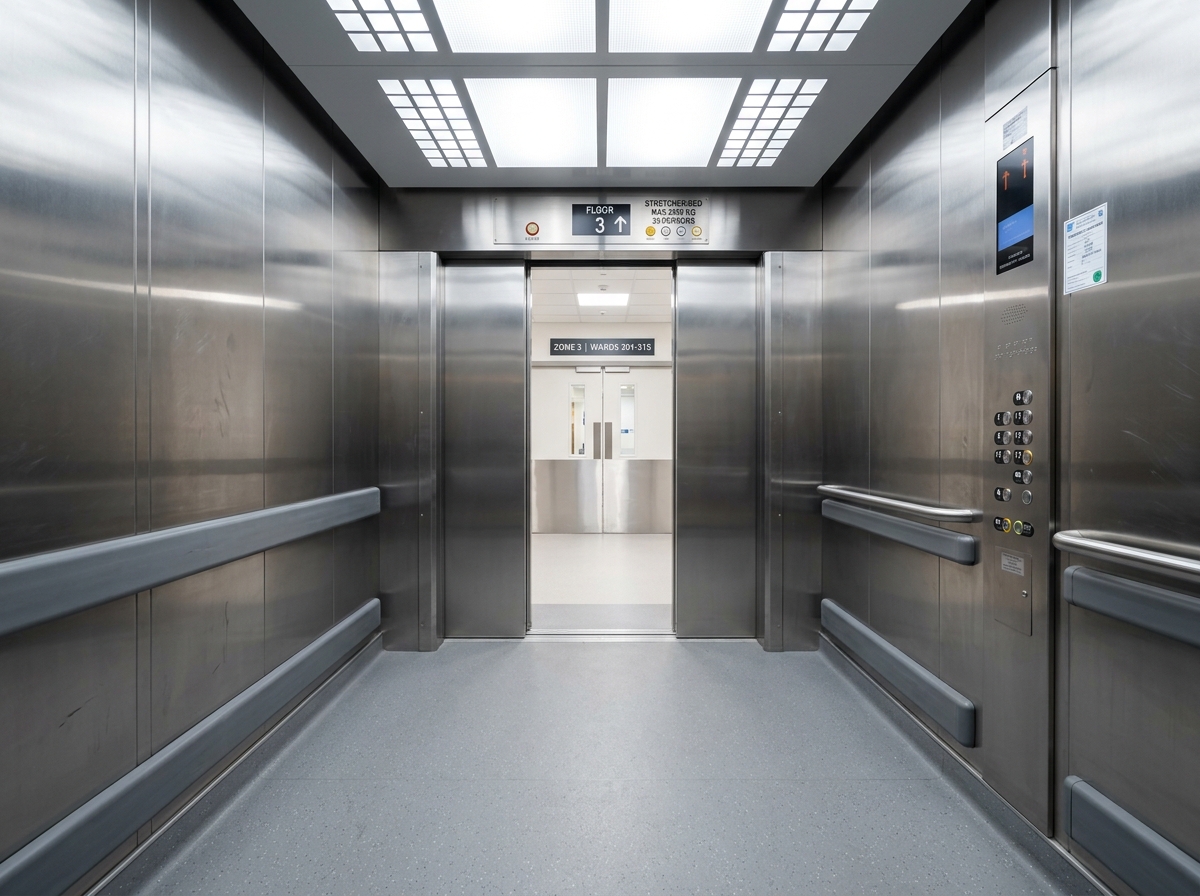

Vertikol Hospital Stretcher Elevator Cabin

HOSPITAL STRETCHER CABIN (SS 304)

Hospital & Stretcher Lift

Key Advantage: Ultra-smooth jerk-free acceleration, extra deep cabin dimensions for stretchers and beds, plus emergency priority override control.

Car Dimensions: Accommodates full medical stretcher + staff
Door Type: Wide center-opening automatic doors
Hygiene: Antibacterial Stainless Steel 304 cabin walls
Ideal For: Hospitals, multispecialty clinics, healthcare centers

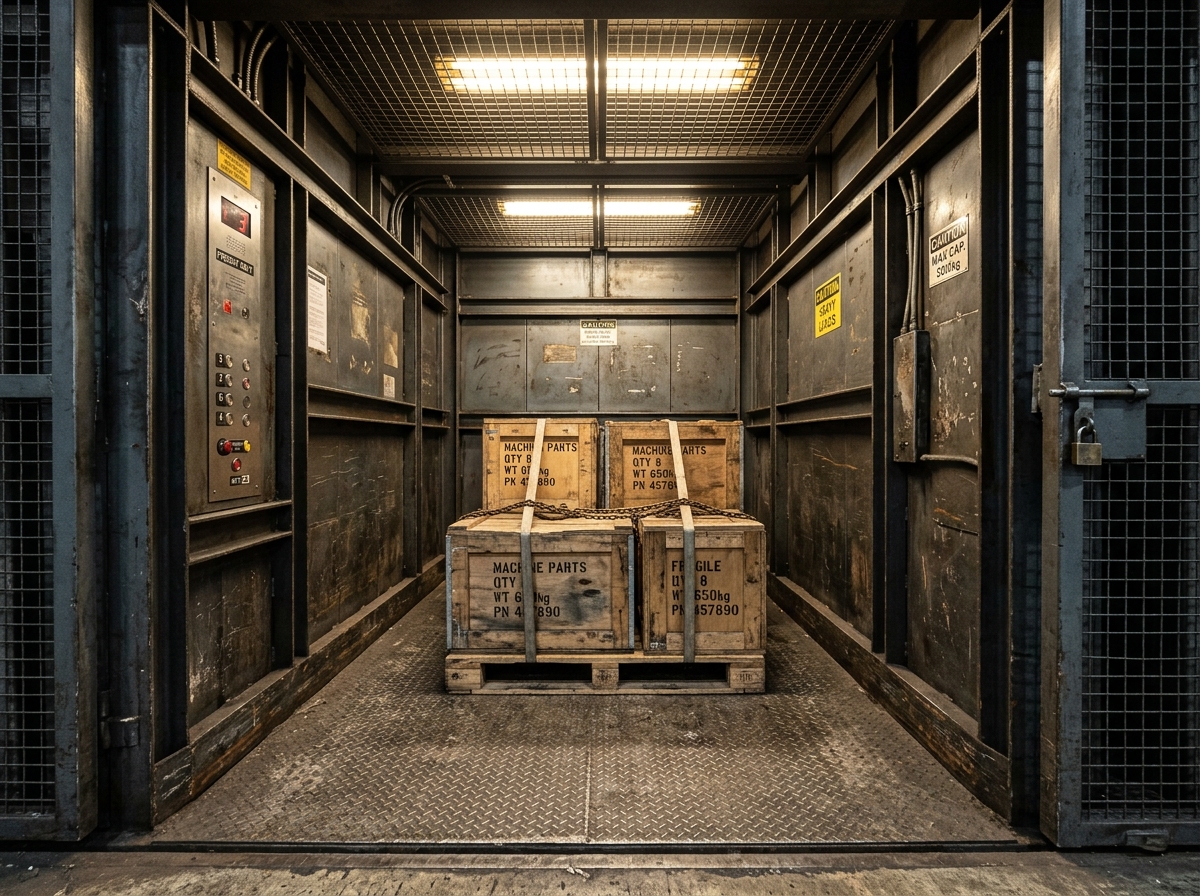

Vertikol Industrial Goods Freight Elevator Cabin

HEAVY INDUSTRIAL FREIGHT (1-5 TON)

Industrial Goods & Freight Lift

Key Advantage: Heavy-duty loading endurance, extra-wide reinforced doors, rugged MS/SS checker plate flooring built to withstand forklift loading.

Payload Capacity: 1 Ton to Multi-ton heavy freight
Structure: Heavy structural channel car frame
Doors: Collapsible gate / Heavy duty automatic doors
Ideal For: Factories, warehouses, logistics hubs, airports

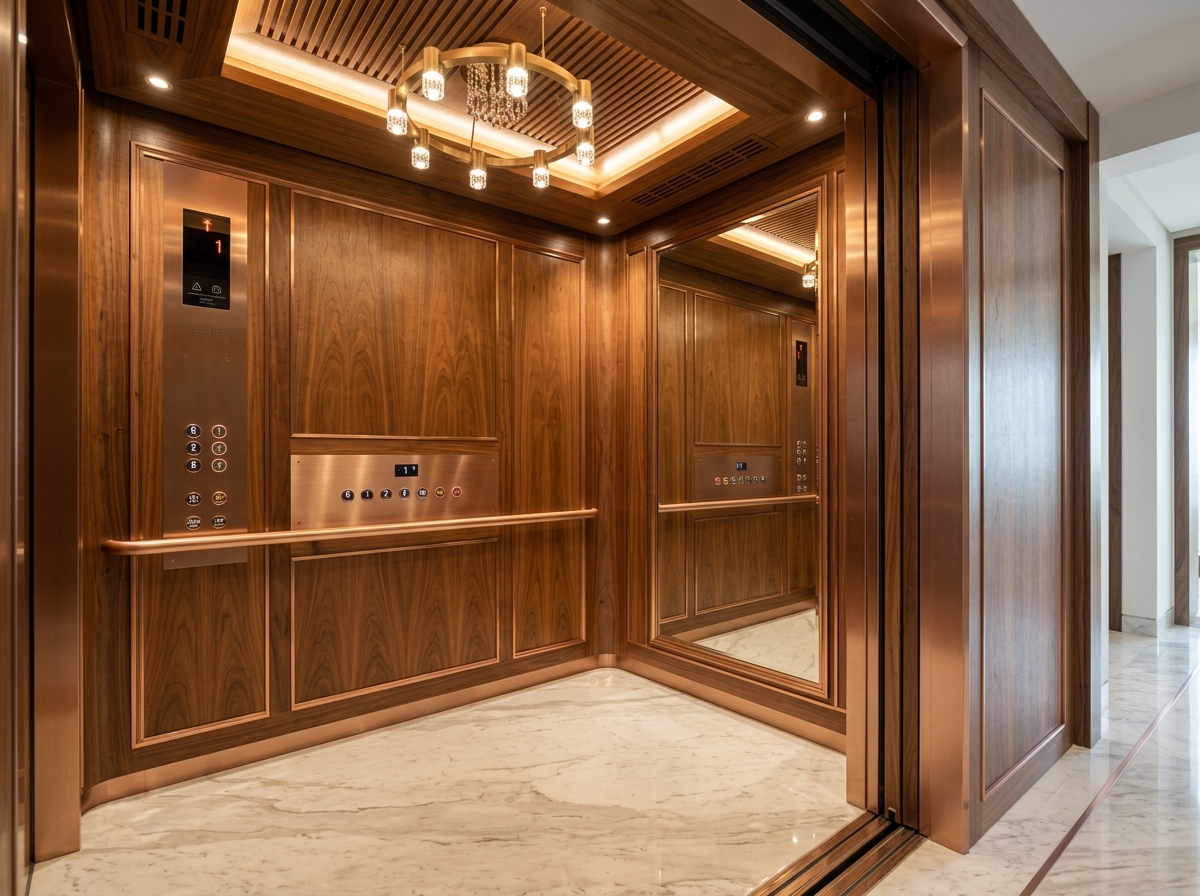

Vertikol Luxury Bungalow Villa Elevator Cabin

LUXURY BUNGALOW & RESORT CABIN

Bungalow & Resort Lift

Key Advantage: Compact shaft footprint, ultra-low operating noise, customizable luxury interiors, and ultra-shallow pit depth down to 400mm.

Pit Requirement: Minimal pit requirement (1500 mm)
Power Supply: Single Phase (220V) or Three Phase
Noise Level: Super quiet gearless operation (<45 dB)
Ideal For: Luxury bungalows, villas, beachfront retreats

Elevator Product Technical Comparison Matrix

Elevator Model	Primary Application	Max Payload / Load	Machine Room Req.	Speed Range	Pit Depth	Key Engineering Advantage
MRL Lift	Residential / Commercial	Up to 1400 kg (20 Pax)	NO (MRL)	1.0 - 1.75 m/s	1500 mm	Saves hoistway space & 40% power reduction
Traction Lift	High-Rise Towers / Malls	Custom High Payload	YES (Overhead)	Up to 2.5 m/s	1500 mm	High speed continuous heavy-duty travel
Glass Capsule Lift	Hotels / Malls / Bungalows	Custom Architectural	OPTIONAL	1.0 - 1.5 m/s	1500 mm	360° Panoramic glass view & luxury facade
Hospital Stretcher Lift	Healthcare Facilities	Stretcher + Staff (1020-1600kg)	MRL / Standard	1.0 m/s	1500 mm	Deep cabin, smooth leveling & priority medical stop
Industrial Goods Lift	Factories / Warehouses	Heavy Freight (Multi-Ton)	MRL / Standard	0.5 - 1.0 m/s	1500 mm	Rugged MS structure, wide opening, forklift ready
Bungalow & Resort Lift	Private Homes / Villas	Up to 680 kg (10 Pax)	NO (Cantilever)	0.5 - 1.0 m/s	1500 mm	Ultra-compact footprint, 400mm pit support

CUSTOM CABIN ARCHITECTURE

Interior Finishes, Ceilings, Walls & Flooring Configurator

Select from Vertikol's VE Series cabin options to craft a bespoke interior matching your building aesthetics.

INTERIOR CABIN LIVE VISUALIZER

S.S. Rose Gold Ceiling with LED Light

04 ▲

● 3 2 1 G

Marble Finish 1544

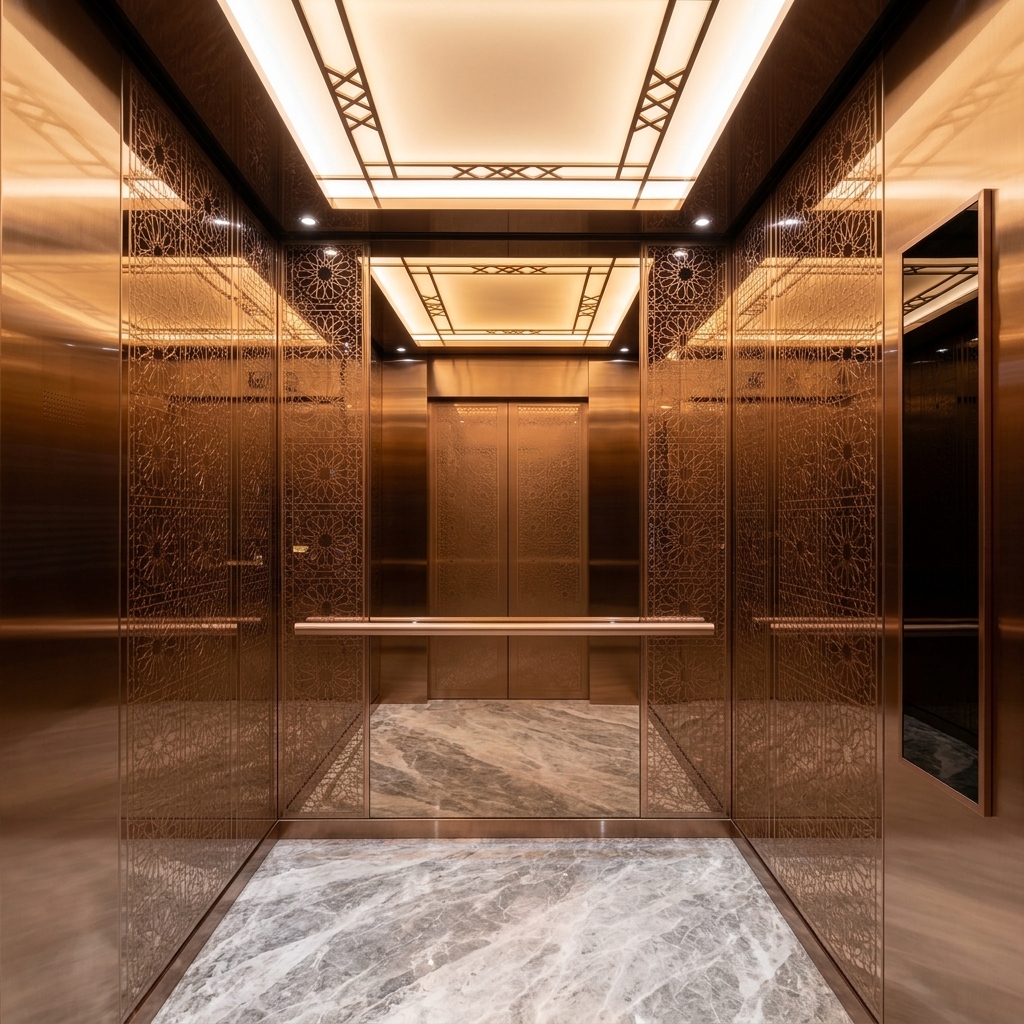

Selected Configuration: Model VE-01

S.S. Rose Gold Ceiling, Acrylic Top with LED Lighting, S.S. Rose Gold Design with Rose Gold Mirror Walls.

Select VE Series Cabin Model:

Select Flooring Material:

Marble Design 1544 Marble Design 1546 Aluminum Checker PVC Mat (Grey/Blue)

Operating Panels & Door Options:

Doors: Automatic Center Opening | Telescopic | Swing Door with Vision | Collapsible Gate COP / LOP Panels: Stainless Steel Hairline / Mirror Finish COP with Digital LED Display, Capacitive Touch Buttons, Braille Markings & Key Locks.

ARCHITECT & DEVELOPER STUDIO

Dynamic Hoistway Shaft Layout Generator

Adjust shaft dimensions, travel height, and car opening to generate real-time CAD layout specifications.

Shaft Parameter Inputs

Hoistway Width (W): 1800 mm

Hoistway Depth (D): 1750 mm

Number of Floors / Stops: 5 Floors

Door Type Selection

HOISTWAY TOP VIEW ARCHITECTURAL DRAWING SCALE 1:20 (AUTO)

Calculated Car Interior: 1300mm (W) x 1200mm (D) | Recommended Counterweight Position: Rear

ENGINEERING & SAFETY EXCELLENCE

Integrated VVVF Microprocessor & Multi-Layer Safety Armor

Uncompromising safety features designed to protect passengers under all operational conditions.

VVVF Microprocessor Controller

Closed-loop integrated control system continuously adjusts motor speed for millimeter-precise floor leveling and whisper-quiet, jerk-free starts and stops while saving up to 40% power.

Automatic Rescue Device (ARD)

In the event of a main power failure, the integrated battery-operated ARD automatically moves the elevator cabin to the nearest floor and opens the doors safely for passenger exit.

Full-Height Infrared Light Curtain

Multi-beam crisscrossing infrared light sensors form an invisible safety curtain across the entire door height. Any obstruction immediately halts door closing without physical contact.

Over-Speed Governor & Progressive Safety Gear

Calibrated mechanical governor instantly detects excess downward velocity or rope slackness, locking heavy-duty hardened steel safety jaws onto the guide rails to immobilize the car.

Overload Annunciator & Intercom

Audio-visual load sensor alerts passengers when maximum capacity is exceeded and keeps doors open. Battery-backed intercom and emergency light ensure 24/7 passenger communication.

Slot-Less Stainless Steel Door Sills

Groove-less bottom door sills prevent dust accumulation, debris jamming, and wheel blockage, guaranteeing smooth, long-life automatic door operation.

LONG-TERM SERVICE COMMITMENT

Annual Maintenance Contracts (AMC) & Technical Support

Keep your vertical assets operating at peak performance with Vertikol's dedicated technical service teams across Palghar and Mumbai Metropolitan Region.

Standard Non-Comprehensive AMC

Routine Preventive Maintenance

Quarterly Routine Inspection & Lubrication
Brake Adjustment & Safety Jaw Calibration
24-Hour Emergency Breakdown Response
Annual Safety Gear Drop Test
Free Spare Parts Replacement

RECOMMENDED FOR HOUSING SOCIETIES

Comprehensive Full-Cover AMC

Zero Additional Repair Costs

Bi-Monthly Preventive Service & Deep Cleaning
100% Free Replacement of Electrical & Mechanical Spares
VVVF Drive & Control Panel PCB Repairs Included
Priority 2-Hour Breakdown Dispatch
ARD Battery Unit Replacement Included

24/7 Critical Emergency AMC

For Hospitals & Factories

24/7 Dedicated Resident Technician Availability
Priority 2-Hour Breakdown Dispatch
Unlimited Spare Parts & Door Operator Replacements
Government Lift Inspector Certification Support
Continuous Remote Monitoring Integration

FOUNDER & LEADERSHIP

Guided by Engineering Vision & Client Trust

"At Vertikol Elevator, our philosophy is simple: vertical transportation is not just about moving people—it is about delivering safety, architectural elegance, and complete peace of mind to building owners."

Mr. Karuna Nidhan — Founder & Technical Director

Under his leadership, Vertikol has established two manufacturing units in Palghar and Sasunavghar, serving over 1,200 commercial, residential, and industrial clients across Maharashtra and India.

Plant & Manufacturing Capabilities

CNC Laser Sheet Metal Cutting Machine
Heavy Duty CNC Press Bending Brake
Car Frame & Sling Jig Assembly Station
Control Panel Assembly & Logic Test Bench
ISO 9001:2015 Quality Inspection Lab

GET IN TOUCH WITH OUR ENGINEERS

Request a Site Visit or Customized Elevator Quotation

Our technical team is ready to review your hoistway drawings, conduct structural site inspections, or provide AMC service proposals.

Direct Call / WhatsApp Support:

+91 90223 32226 | +91 97677 32226

Official Email:

vertikoelevator@gmail.com

Factory & Manufacturing Unit:

Gala No 5, 6, 7, Nr. Ramdev Studio, Sasunavghar, Naigaon East, PIN 401208, Maharashtra, India.

Open Factory Location on Google Maps

Corporate Office:

A3/25, Namo Shivastu City, Manor Road, Palghar, PIN 401404, Maharashtra, India.

Open Corporate Office on Google Maps

Send Technical Inquiry

Full Name *

Phone Number *

Email Address

Building Type

Service Required

Schedule Preferred Site Visit / Inspection

Preferred Date

Preferred Time Slot

Project Details / Hoistway Dimensions (Optional)
